Pipe Pup Monolithic Isolating Joints

Prevent Corrosion

Prevent Corrosion

Prevent Corrosion

Insulating gasket that prevents metal-to-metal contact across the joint

Size and Ratings

Prevent Corrosion

Prevent Corrosion

2" thru 16" and pressure ranging from ANSI 300 to ANSI 600

Factory Assembled

Prevent Corrosion

Factory Assembled

Bolt-less design to satisfy customers that require a  single-piece construction for simplicity of installation

CL600 Sizes 2-16" Pipe Pup Joints in stock ready to ship.

Contact Us for availability

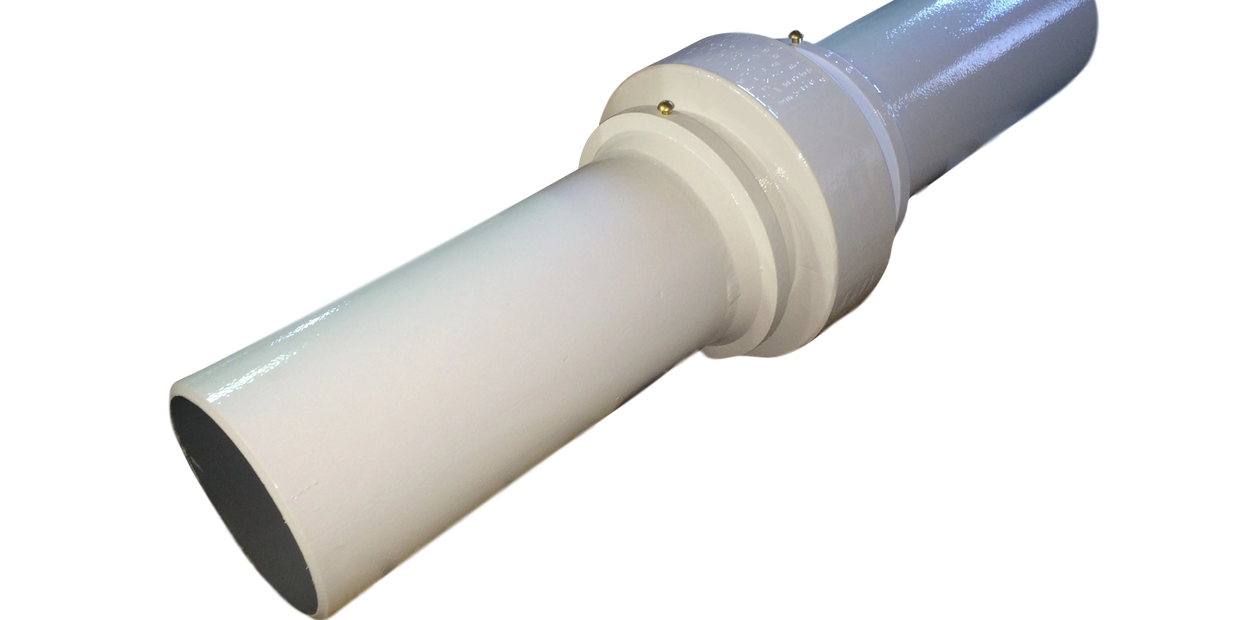

Monolithic Isolating Joint. Pipeline Cathodic Protection to prevent corrosion

Alternative to Flanged Isolation Kits and Joints

Factory Monolithic Insulated Joints Are Assembled Under Controlled Conditions.

Tube Turns insulated joints are prefabricated, one-piece unions of butt-weld, forged body construction used to electrically isolate and protect pipework and associated equipment from corrosion damage caused by stray electrical currents and unwanted electrical potentials that come to the pipeline from overhead power lines, parallel pipelines, and other sources.


Isolation Joints prevent metal to metal contact across the joint, and this protection is long term and maintenance-free. Custom built to your specifications, Isolation Joints are manufactured to any diameter or wall thickness and are through-bored to allow for the passage of pigs and scrapers; and each Isolation Joint is serialized, heat code identified and traceable.



Tube Turns Pipe Pup Insulated Joints have these advantages over other electrical isolation devices:

1. Fully factory assembled and ready for installation, no need to disassemble or reassemble

2. Factory tested electrically

3. Factory inspected and mechanically leak tested

4. Internally and externally coated with non-conductive epoxy at the factory

5. Requires no maintenance or adjustment after installation

6. Structurally robust

Designed For Use With Almost Any Fluid:

Oil, Gas, Water

  • Onshore, offshore, buried, aboveground or subsea; in “sweet” (non-corrosive) or “sour” corrosive applications
  • High pressure gas transmission service
  • Gas gathering systems
  • Liquid pipelines of all types
  • Gas distribution and branch lines
  • Anywhere the pipeline enters or exits the ground
  • Installed on inlet and outlet pipes to isolate meters, tanks, pump and compressor stations from the main CP system

Monolithic Isolation Joint Brochure

Currently Stocking CL600 Insulated Joints

Download PDF

Pipeline ASME "Pipe Pup Isolation Joints"

Pipeline Cathodic Protection Monolithic Insulated Joint.
Monolithic Isolation Joint
"Pipe Pup"

Pipe Pup Isolation Joints

Size Range:  2" thru 16" and pressure ranging from ANSI 300 to ANSI 600


Tube Turns “Pipe Pup” Insulated Joints are monolithic, pre-assembled and tested units used to electrically isolate piping or pipeline segments from adjacent equipment. A key feature of “Pipe Pup” Insulated Joints is the inclusion of ready-to-weld pipe ends matched to the customer’s pipeline outside diameter, internal bore, wall thickness and pipe grade.

Tube Turns “PIPE PUP” Insulated Joints are monolithic, pre-assembled and tested units used to electrically isolate piping or pipeline segments, and from adjacent equipment.  A key feature of “Pipe Pup” Insulated Joints is the inclusion of ready-to-weld pipe ends matched to the customer’s pipeline outside diameter internal bore, wall thickness and pipe grade.


Standard designs are carbon steel, with Pipe Pup metallurgy in API 5L Gr. B and hub/yoke metallurgy in ASTM A105.  Also available are Yoke and Hub components in ASTM A694 F42, F46, F50, F52, F56, F60, F65, F70


Pipe Pup Insulated Joints are available in ANSI Class: 150, 300, 600, 900, 1500, and 2500.


Design options are available for temperature ranges from -50°F (-46°C) to 203°F (95°C).  Up to 482°F (250°C) available on request.


The weld end hubs of our Insulating joints are provided in compliance with the customer’s piping specification. Optional extra-length pipe pups (provided by the customer) can be included in the completed joint.

Pipeline Insulated Joint Applications

Tube Turns’ Pipe Pup Insulated Joints can be designed for use with almost any fluid, including oil, gas, water, etc. where the operating temperature range falls within -50°F (-46°C) to 338°F (170°C). The insulated joints can be installed vertically, horizontally, or any other orientation, onshore, offshore, buried, exposed aboveground, or subsea, and in “sweet” (non-corrosive) or “sour” (corrosive) applications.

Insulated Joint Testing

Each joint manufactured by Tube Turns is completely factory assembled and hydro-statically tested to 1.5 times the working pressure before shipment. In addition, each joint is electrically tested to verify its insulating capability. No maintenance required for the entire service life of the insulating joint.

Pipe Pup Isolating Joint Materials

STANDARD MATERIALS:

  • HUB - PIPE   NIPPLES API 5L GR X52 PSL-2 AND ISO 3183-3 GR L360 (X52) PSL-2 CERT
  • Yoke – A694-F52
  • FKM FLUORELASTOMER   O-RINGS

TWO PART EPOXY CORROSION COATING   FOR EXT & HUMID ENVIRONMENT

HYDRO TEST 5 HRS @ 1.5 TIMES

CARBON EQUIVALENT-0.32,NIOBIUM 1% MAX,SULFUR .002%

Pipe Pup Insulated Joint O-Rings

  • Dual static, self-energized FKM/Viton
  • Housed in grooves machined into each weld hub
  • Under compression and locked into position to provide a positive pressure seal
  • Completely sealed internally and to atmosphere

Delivery To Meet Your Project Needs

Sypris Tube Turns is now keeping sizes 2-16" CL600 in stock ready to ship.


Stock Insulated Joints have standard wall thicknesses and X52 yield material.


 These connections are known in the pipeline industry by various terms such as the following:

  • Monolithic Insulating Joint
  • Monolithic Insulation Joint
  • Monolithic Isolating Joint
  • Monolithic Isolation Joint

Monolithic Pipe Pup Insulating Joint Internals

8" Monolithic Isolation joint production drawing. Electrical isolation of pipelines

Three features assure electrical isolation:



  1. Insulating gasket that prevents metal-to-metal contact across the joint
  2. Internal cavities filled with a special dielectric compound
  3. Internal and external surfaces coated with two (2) coats of non-conductive epoxy paint, or coating per the customer’s specification.

insulated joints are prefabricated, one-piece unions of butt-weld

Examination

Tube Turns® is fully qualified to provide in-house Magnetic Particle, Ultrasonic, and Liquid Penetrant examination along with NDE test reports to meet customer requirements.

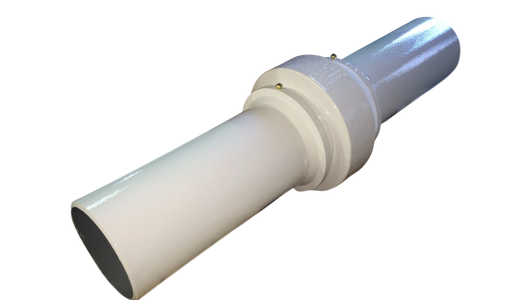

“PIPE PUP” Insulated Joints are monolithic, pre-assembled used to electrically isolate piping

Weld Ends

The weld end hubs of our Insulating joints are provided in compliance with the customer’s piping specification.
