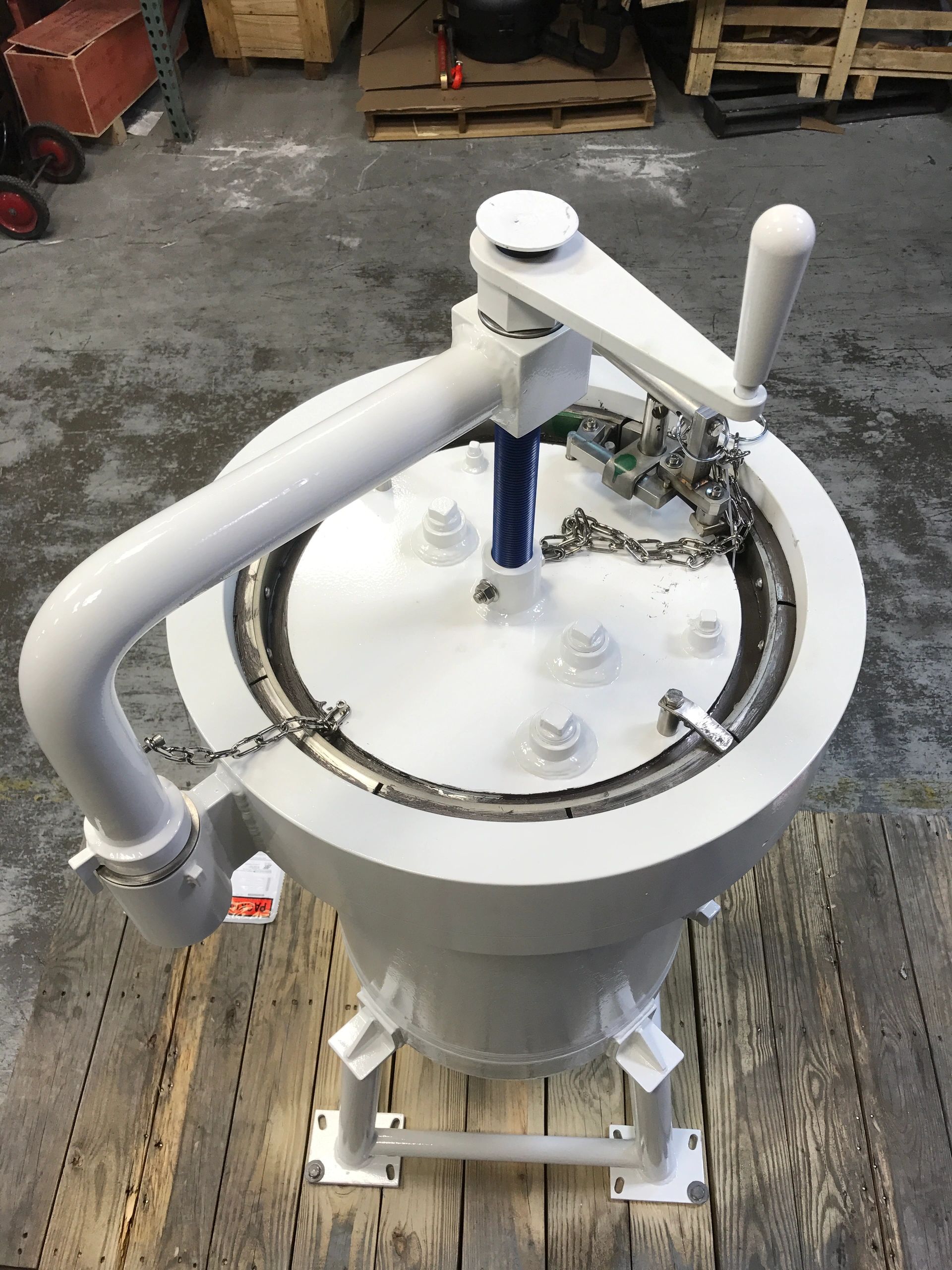

ASME Quick (Fast) Opening Closures
Pipeline Quick Opening Closures & Isolation Joints
Quick Opening Closure Applications
- Pig Launchers and Receivers
- Gas & Liquid Metering Systems
- Filter Coalescers
- Basket Strainers
- Decompression Chambers
- Sand Blasting Systems
- Primary Seawater Filtration (SRU)Autoclave and CO2 Dry Cleaning Process
- Carbon Filter Vessels
- Subsea Pipeline Systems
- LNG Processing
- Produced Water Hydrocodones
- Fuel Conditioning Skids for Turbines
- Containment Systems
- Offshore Central Processing Platforms
- Manways
- Inspection Ports
- Reactor Vessels
- Sock Filters
- Amine Filters
- FPSO (piping systems, filtration, etc.)
- Autoclave and CO2 Dry Cleaning Process
Monolithic Insulated Joints
Insulated Joints (also referred to as “Isolation Joints” or “Insulating Joints”) are available in sizes ranging from 2" thru 48" and pressure ranging from ANSI 150 to ANSI 900.
Tube Turns Monolithic Insulated Joints electrically isolate sections of pipeline to prevent corrosion caused by stray electrical currents or interference from other pipelines and power transmission cables. Three features assure electrical isolation:
- Insulating gasket that prevents metal-to-metal contact across the joint
- Internal cavities filled with a special dielectric compound
- Internal and external surfaces coated with two (2) coats of non-conductive epoxy paint, or coating per the customer’s specification.
Pipeline Quick Opening Closure Applications
Pig Launchers and Receivers
All closures can be designed for either horizontal or vertical application and can be equipped with such accessories as sight glasses, nozzles, drains, gauges, sampling ports, open/close automation, and safety interlocks
Pig/Scraper launchers and pig/scraper receivers are installed on pipelines to launch and receive pipeline pigs, pipeline spheres, and pipeline inspection tools. Pig launchers & pig receivers offer a safe and effective means of inserting and removing pipeline pigs to and from pipelines
Process Chemical Pressure Chambers
Connection types including full and reduced access as well as mitred designs for inclined or declined vessels are available. Sypris Technologies, TUBE TURNS® Products offers the most diverse and complete closure product portfolio in the world.
The Quick Opening Closure (QOC) is designed in accordance with ASME VIII Divison 1, ASME B31.4 (Oil & Liquid Products Code) & ASME B31.8 (Gas Pipeline Code).
Gas & Liquid Metering Systems
Gas & Liquid Metering Systems
TUBE TURNS® Products of Sypris Technologies Inc. manufactures a family of closures in sizes ranging from 2” to 72”. Our closures are manufactured from a wide variety of ASME approved materials including Carbon Steel, Stainless Steel (304, 304L, 316, 316L, Duplex and Super Duplex), Monel®, Inconel®, Hastelloy® and other exotic materials as specified by our customers.
LNG Processing
Fuel Conditioning Skids for Turbines
Gas & Liquid Metering Systems
TUBE TURNS® designs and manufactures a complete line of quick opening closures to international standards, including ASME Section VIII Division I and Division II, PD 5500 / BS EN 13445, with termination specifications to meet ASME B31.3, B31.4, B31.8 and many others. pipeline closures
Fuel Conditioning Skids for Turbines
Fuel Conditioning Skids for Turbines
Fuel Conditioning Skids for Turbines
Size Ranges 6” – 66” Pressure range T-Bolt Closures are ideal for applications such as storage tanks, mixing equipment, filters, separators, inspection ports, tower access, reactor access and hand holes on processing equipment. T-bolts can be supplied in specialty applications such as sanitary equipment, medical waste and hyperbaric chambers.
Carbon Filter Vessels
Fuel Conditioning Skids for Turbines
Fuel Conditioning Skids for Turbines
ANSI 150 – ANSI 2500 Yoke Style Closures can be equipped with operating aids to simplify operation and speed up opening and closing. Devices such as breakover wrenches and chain and sprocket drives
Pipeline and Pressure Vessel Closures | Isolation Joints
Pipeline and Vessel Closures
Pressure Vessel Closures | Hatch | Manways
Pipeline Monolithic Insulated Joints
Pipeline Monolithic Insulated Joints
Pressure Vessel Closures | Hatch | Manways
Pipeline Monolithic Insulated Joints
Pressure Vessel Closures | Hatch | Manways
Pressure Vessel Closures | Hatch | Manways
Pressure Vessel Closures | Hatch | Manways
Now Offering Pipeline Pig Signalers
The Sypris® Technologies Sig-Tech® intrusive Pig Signaler can be installed at pre-determined intervals on pipelines to detect the passage of a cast polyurethane pigs or spherical type pigs.
