Elliptical Hinged Manways - "Swing Bolt" Closures

Low to Medium Pressure Closures

Horizontal and Vertical Closure Configurations

Horizontal and Vertical Closure Configurations

It is lighter, less expensive and much more convenient than blind flanges

Horizontal and Vertical Closure Configurations

Horizontal and Vertical Closure Configurations

Horizontal and Vertical Closure Configurations

Closures are available in any configuration to accommodate your application

ASME Code Stamped Hinged Closures

Horizontal and Vertical Closure Configurations

ASME Code Stamped Hinged Closures

Stamping of TUBE TURNS® T-Bolt Closures is available on request at a nominal extra cost

Quick Access Hinged Closures | T-Bolt Style Closures

Vertically mounted T Bolt closures installed on ASME-coded pressure vessels.

The T-Bolt Closure is A Compact Closure Design For Tanks, Pressure Vessels, and Filters. Any Vessel or piping system requiring frequent and or quick access.

The simplicity of construction and operation are keynotes of the Tube Turns T-Bolt Hinged Closure. The closure consists of a thick semi-elliptical head that is hinged to a matching hub, a self-energized O-ring, and a suitable number of T-Bolts to effect and maintain a tight seal. For most services, the standard materials—carbon steel and a “Buna-N” 0-ring are satisfactory. Other metals and elastomers are furnished on special request. The T-Bolt Hinged Closure is opened quickly and easily.The operator merely loosens the T-Bolts until they clear the head lugs and allow the head to be swung open on its hinge. Complete, unrestricted access is provided, too, since the standard hinging permits a full 180°opening.  Quick Opening Swing Bolt Hinged Closure provides a fast, economical, yet simple means of access to pressure vessels and lines that require frequent opening. high-pressure manway


Hinged Closure Materials:

Internal (Wetted) Materials:

Carbon Steel (ex. SA516-70), Stainless Steel (ex. SA240-304, 304L, 316, 316L), Duplex Stainless Steel (ex. SA240-S31803), Inconel (ex. SB168-N0660), etc.


External Materials:

wCarbon Steel, Stainless Steel, etc.

Swing Bolt Closure with break over wrenches installed on a pressure vessel. Manway closures

T-Bolt Break-Over Wrenches and Camlock Assemblies

The Break-Over Wrench Lug is welded to the T-Bolt (head bolt) and a handle is inserted over this lug. A pin is then inserted through the handle and the lug allowing the handle to act as a wrench and making the Break-Over Wrench an integral part of the T-Bolt Assembly.


In a Camlock Assembly,components replace the tapped swing nut (in the hub nut mount).The Camlock bolting unit consists of a high strength eye bolt that is pinned through an eccentric cam to provide the necessary clamping action.The caming action is adjustable by moving the adjustable nut at the threaded end of the eye bolt. This allows the camlock assembly to be loosened & tightened merely by lowering or raising the cam handle.

16" Vertical T-Bolt Closure with spring assisted hinge for easy opening and frequent access to press

Vertical T-Bolt Closures

T-Bolt Closures with a spring loaded head for vertical applications are furnished in sizes 10”- 42”.The need for spring loading can be determined by reference to the table below. The tabulated “Force to Lift Head”is the force to lift the head without the springs. Manway covers for tanks

T-Bolt Hinged Closure Operation- Hinged Swing Bolt Closure

Standard Vertical T-Bolt. Manway covers for tanks


"ManWay Closures, T Bolt Hinged, Swing Bolt, Fast Opening Blind. Hinged manway for tanks. tank covers"  Quick Opening Swing Bolt Hinged Closure

Hinged Closure INSTALLATION

T-Bolt Hinged Closures

The T-Bolt hinged closure is joined to the pipe or vessel nozzle by a circumferential butt-weld, employing standard welding techniques appropriate to the particular installation.

Swing Bolt Closure Operation

To close the T-bolt hinged closure, first inspect the O-ring and seating surface and remove any foreign material, then close the head.  All bolts should be swung into place and tightened. The bolts should be tightened in an alternating sequence in the same manner as flanges.

Easy Maintenance

Gasket: The O-ring should be inspected prior to every closing. Variations in service conditions will determine its useful life. Frequency of replacement will depend upon such factors as operating pressure and temperature, shrinkage and swelling caused by product absorption, the corrosiveness of the product in the system and frequency of operation.


Bolts: Lubricate the bolts periodically in accordance with the frequency and severity of the service involved. Inspect the head bolts periodically for thread wear.

Hinged T-Bolt "Swing Bolt Closures" manway covers for tanks

Manway Closures, T Bolt Hinged, Swing Bolt, Hatch

ManWay Closures, T Bolt Hinged, Swing Bolt, Fast Opening Blind. Hinged manway or covers for tanks. High Pressure Manway

ManWay Hinged Closure, T Bolt Hinged, Swing Bolt Closure. B7 Bolting available

Full Size Range For Swing Bolt Closures

Standard Tube Turns T-Bolt Hinged Closures are furnished in carbon steel, stainless steel, & other alloys. Sizes range from 6” thru 66”.


“Buna-N”is the standard 0-ring gasket material. For services above 250F or where special corrosive conditions are to be encountered,0-rings of “Viton”,Silicone Rubber, “Neoprene’ Ethylene Propylene,“Teflon Encapsulated”(Viton or Silicone Core) can be furnished at an extra charge.

T-Bolt Closure with Break Over Wrenches Installed. Sight Glass installed in the center of the head.

T-Bolt Closure Options

 Break-Over Wrenches and Camlocks are optional attachments and accessories adding further to the versatility and utility of our T-Bolt Closures. Attachment of either of these options to the closure’s T-Bolts provides extra convenience, speed and ease in tightening the bolts. These attachments eliminate the need for separate wrenches.  Quick Opening Swing Bolt Hinged Closure provides a fast, economical, yet simple means of access to pressure vessels and lines that require frequent opening.

Hinged Closures Come Fully Assembled

 A complete unit normally costs less than the component parts for a blind or slip-on flange combination. There need be no additional expenses for hinges, hoists, davits, etc., as the closure can be fully assembled when shipped . high pressure manway



  • Hinged Closures
  • Swing Bolt
  • Camlock Closures
  • Access Hatches
  • Manway and Handhole Assemblies


Horizontal Manway Closure installed on an industrial pressure vessel. Skid Mounted Vessel. Tube Turn

Swing Bolt Warning Features

 The holding lugs are mounted on the closure head at an angle of approximately 10 degrees. This provides a valuable feature, for the angular mounting requires that the T-bolt be backed off an extra turn or two before it will swing out of the holding position. Thus, if there is pressure in the vessel while it is being opened, initial turns of the bolts permit the head to lift slightly and the contained fluid escapes, alerting the operator to possible danger

Swing Bolt Closure installed on a pressure vessel. Manway closures for many pressure vessel applications. Tube Turns Hinged Closure

Pressure Vessel Closures Applications

 1. Manways for storage tanks, mixing vessels, filters, separators and other batch equipment.

 2. Caps for inspection ports and other access openings on towers and reactors.

3. Handholes on processing equipment and medical or laboratory apparatus such as hyperbaric chambers.

Vertical Swing Bolt Closures installed on pressure vessels. Manway closures for many pressure vessel

ASME Code Stamped Closures

 Stamping of TUBE TURNS® T-BoltClosures is available on request at a nominal extra cost. This includes (1) the furnishing of a Partial Data Sheet verifying shop inspection of the unit by a commissioned inspector of the National Boiler and Pressure Vessel Inspectors, and (2) the affixing of the ASME stamp on the closure.

Contact nick@stantonsales.net for more information on "swing bolt closures"

Chemical, Wastewater, Oil & Gas, Petrochemical and Power Plants

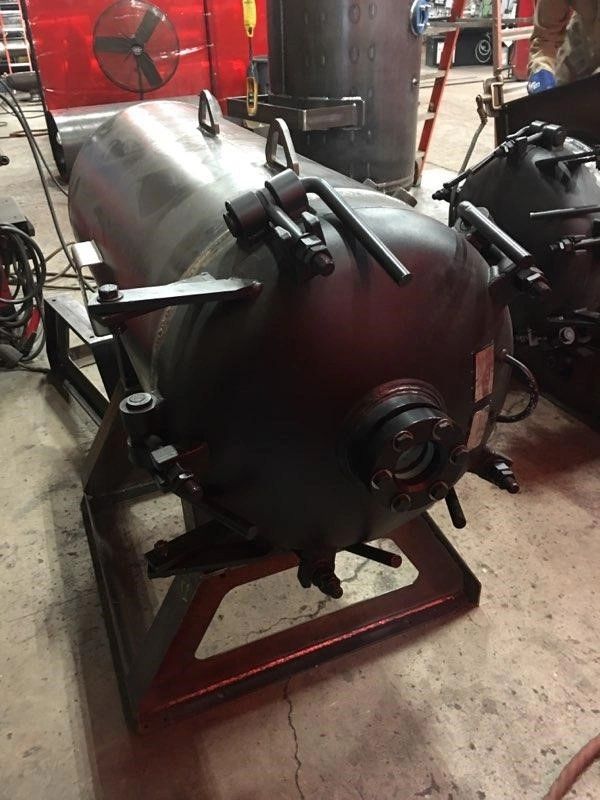

24 inch manway access door mounted on a horizontal pressure vessel. Closure includes sight glass

24 inch Closure with 4" Sight Glass

Vertical Pressure vessel manway with davit and hand wheel. CL300 T-Bolt closure.

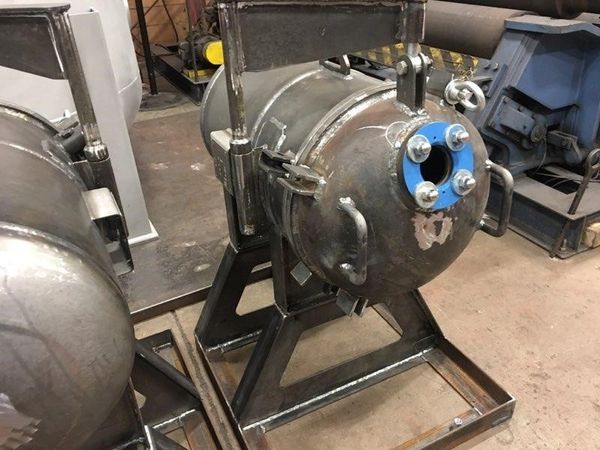

12" Swing Bolt closure with sight glass and camlock handles mounted on a horizontal pressure vessel

12" T-Bolt with Sight Glass Installed on Horizontal Vessel

Pipeing access door installed in a power plant. Swing bolt closure.
Vessel Manway doors mounted on horizontal pressure chambers. Being used in chemical process.
6" manway access door installed on a vertical vessel with cam-lock assemblies.
Vertical mounted T-Bolt closure for quick access into piping systems.
T-bolt quick opening closure with sight glass and  break over handles for quick access.

T-Bolt Closure shown with extra long welding hub (neck) and break over handles for quick access.

Operating aids available for T-Bolt closures. Manway quick access doors with break over wrenches.

Operating Aids for T-Bolt closures.

Swing bolt manway shown with extra long welding hub. Used on process piping.
Vertical Manway access door installed on carbon filter. Spring assist hinge allows easy opening.

Vertical T-Bolt installed on a carbon Filter. All vertical closure come with a spring assisted hinge.

Swing bolt access door mounted on horizontal oil & Gas filter vessel.

T Bolt Closure | Swing Bolt Closure Pressure Ratings

T-Bolt Closure Pressure Ratings (pdf)

Download

T-Bolt Closure Brochure (pdf)

Download

T-Bolt Closure IOM (pdf)

Download

T-Bolt Closure | Swing Bolt CLOSURE Pressure Ratings

Larger Size T-Bolt Closures Are Available Upon Engineering Review.

Ratings apply to stainless steel closures with carbon steel bolts and attachments. Closures of all stainless steel are rated lower. For temperatures higher than 450F, consult Tube Turns stating temperature, pressure, fluid and type of o-ring required. Ratings apply for closures with ASME SA325 bolts. Slightly higher ratings are available in some sizes upon application by using ASME SA193 Grade B7 bolts, resulting in a slightly higher price.


Above ratings good for 450F. “Buna-N” is the standard 0-ring gasket material. For services above 250F or where special corrosive conditions are to be encountered, 0-rings of “Viton”, Silicone Rubber, “Neoprene’ Ethylene Propylene, “Teflon Encapsulated” (Viton or Silicone Core) can be furnished at an extra charge.


All dimension are in inches. When ordering, please specify class, nominal size, bore, material and service conditions. T-Bolt Closures with longer hubs; Closures made to I.D. dimensions; or Closures equipped with Sight Glasses, Break-over Wrenches, Camlocks and other accessories are available on special order. *Standard Closures are taper bored to match standard wall thickness.


Spare Parts: Stock two extra O-rings per closure for each individual closure. If several closures of the same size are installed close to one another, the number of extra O-rings may be reduced. Replacement bolts and swing nuts are readily available from Tube Turns.

T-BOLT CLOSURE OPTIONS

Break-Over Wrenches and Camlocks are optional attachments and accessories adding further to the versatility and utility of our T-Bolt Closures. Attachment of either of these options to the closure’s T-Bolts provides extra convenience, speed and ease in tightening the bolts. These attachments eliminate the need for separate wrenches.

Swing Bolt Closure Brochure
